DSP730 In-Wall Digital Active Speaker.

Sale!
dsp730-in-wall-loudspeaker

The DSP730 is Meridian’s high-resolution in-wall loudspeaker, engineered to deliver reference-grade sound from within the architecture of your room. At just 102mm deep, it disappears into the wall — but its three-way active driver array, six onboard amplifiers, and Meridian’s proprietary DSP processing ensure it performs with the authority and precision of a freestanding loudspeaker. Purpose-built for small to medium rooms where visible equipment is unacceptable but sonic compromise is equally so, the DSP730 sits within Meridian’s Architectural Reference series alongside the DSP750 — a lineage rooted in over four decades of digital audio pioneering from the company that invented the world’s first digital active loudspeaker.

SKU MA-DSP730. Categories , Brand:
Original price was: $14,499.00.Current price is: $5,999.00.

Key Features

  • Reference-level in-wall output — peak SPL of 115dB at 1 metre from a single speaker, scalable to 122dB when three units are configured in Meridian’s HPA (High Power Array), with bass reaching 38Hz and treble extending beyond 40kHz for certified hi-res reproduction.
  • Three-way active driver system — a 160mm long-throw bass driver with titanium voice coil, a 100mm woven polypropylene mid-range, and an aluminium dome tweeter with custom steel waveguide — each driven by its own dedicated bridged amplifier pair for precise, distortion-free control at every frequency.
  • 300W of integrated Class-D amplification — three bridged pairs delivering over 100W each into 8 ohms, eliminating the need for external amp racks and keeping the signal path entirely within Meridian’s DSP ecosystem.

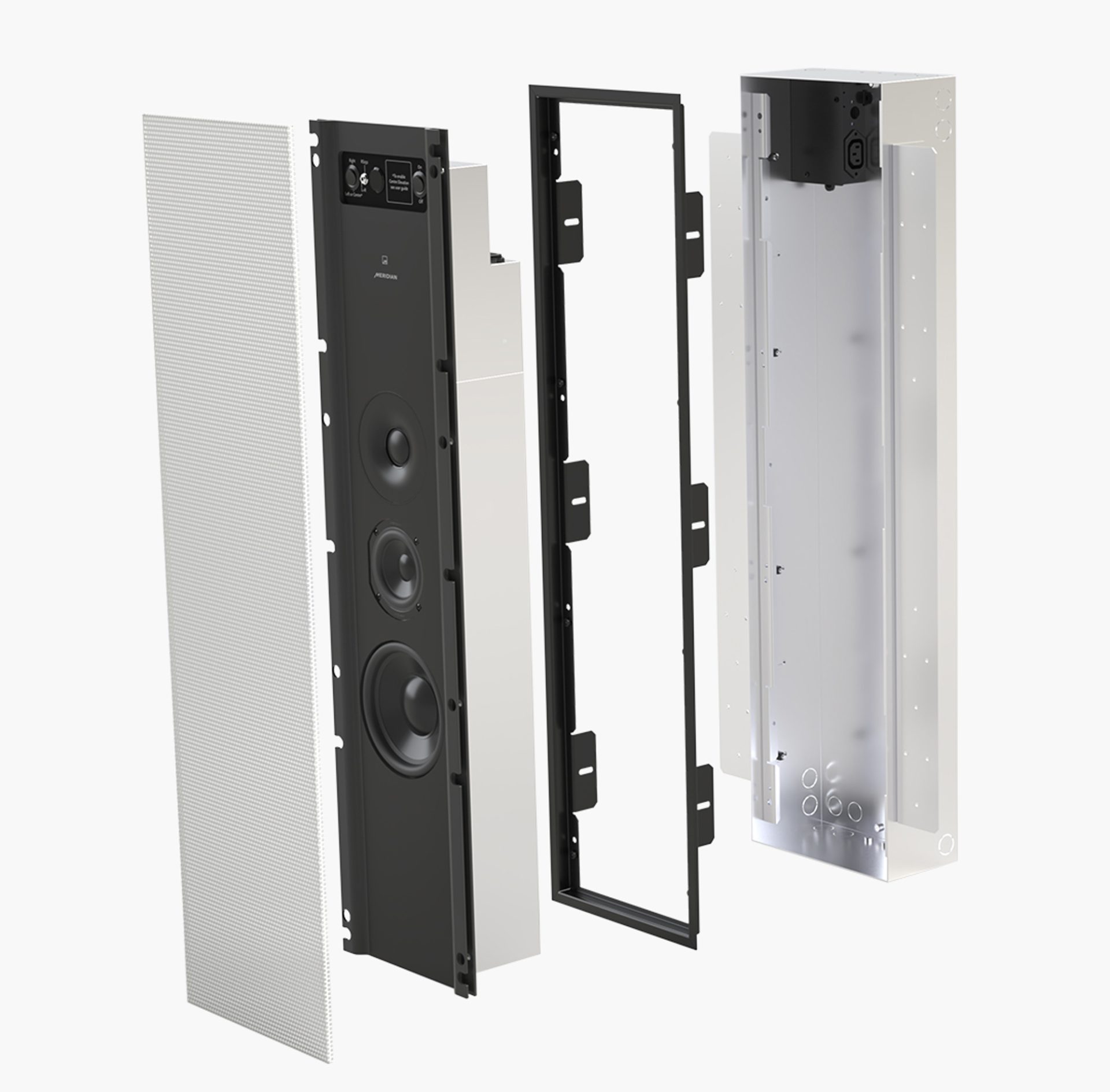

  • Ultra-shallow flush-mount architecture — the rough-in box and frame system sits just 102mm behind the wall surface, with a paintable grille that vanishes into any interior finish for true architectural integration.
  • Meridian-exclusive DSP technologies — E3 Bass expands and extends low-frequency reach beyond what the enclosure size would normally allow; Full Frequency Alignment ensures every frequency arrives at the listener’s ear simultaneously; Pro-Active Bass and Pro-Active Thermal safeguard the drivers under sustained high-output use.
  • Image Elevation for cinema installations — when mounted horizontally beneath a screen, Meridian’s psychoacoustic processing lifts the perceived centre-channel image to screen height, locking dialogue to the on-screen action without a visible centre speaker.
  • Meridian SpeakerLink digital connection — receives 24-bit audio at up to 96kHz over a single Cat-5 cable, carrying both left and right channels along with control data, enabling clean daisy-chain or star-wired runs with no analogue signal degradation.
  • Vertical or horizontal mounting — a front-panel channel selector (Left, Right, or L+R mono sum) adapts the DSP730 to stereo pairs, surround arrays, or standalone single-speaker installations beneath a display.
